20N40H N-Channel 500V Power MOSFET

VBsemi

Description

20N40H-VB TO220 20N40H-VB TO220 Datasheet N-Channel 500-V (D-S) Super Junction MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) at TJ max.RDS(on) at .

📥 Download Datasheet

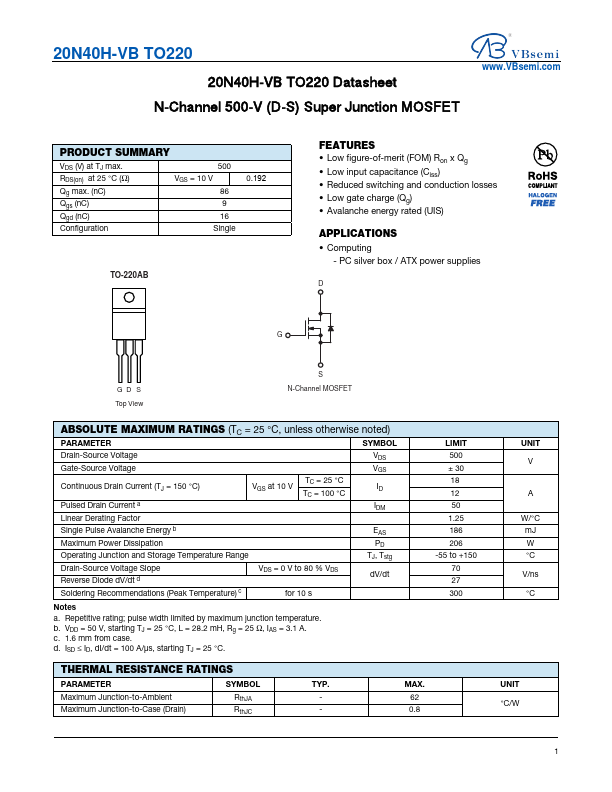

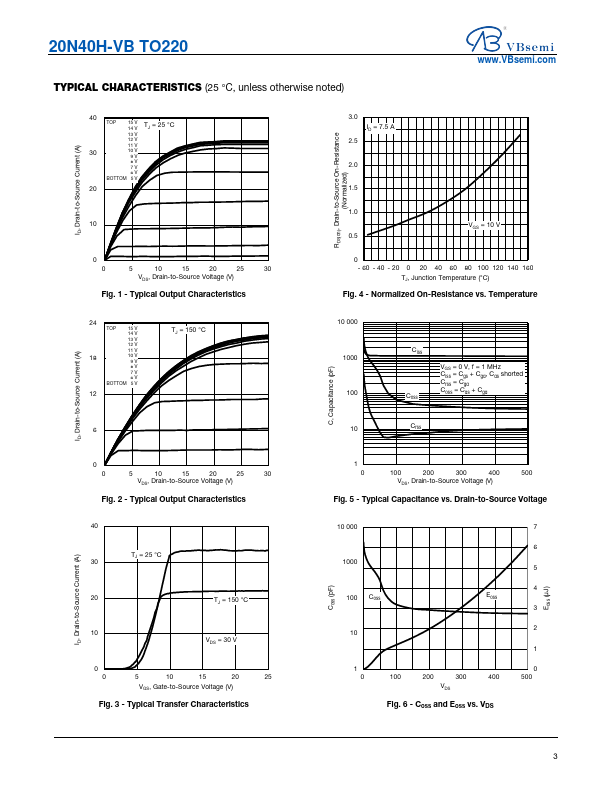

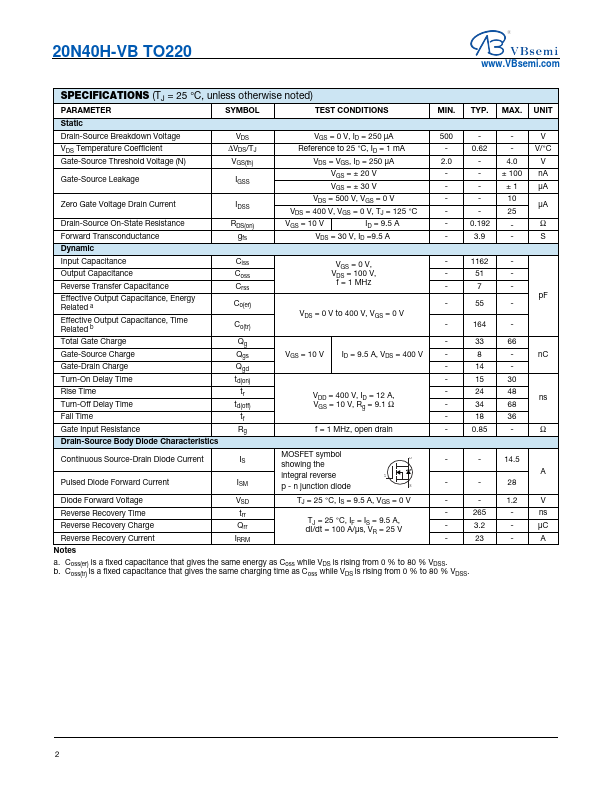

20N40H Datasheet Preview — Preview of 20N40H PDF

Datasheet Specifications

Part number: 20N40H
Manufacturer: VBsemi
File Size: 388.60 KB
Datasheet: 20N40H-VBsemi.pdf
Description: N-Channel 500V Power MOSFET

Features

* Low figure-of-merit (FOM) Ron x Qg
* Low input capacitance (Ciss)
* Reduced switching and conduction losses
* Low gate charge (Qg)

Applications

* Computing - PC silver box / ATX power supplies D G GD S Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) Pulsed Drain Current a VGS at 10 V T
