UM4409 - P-Channel Enhancement Mode MOSFET

The UM4409 by UniverChipSemi is a P-Channel Enhancement Mode MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

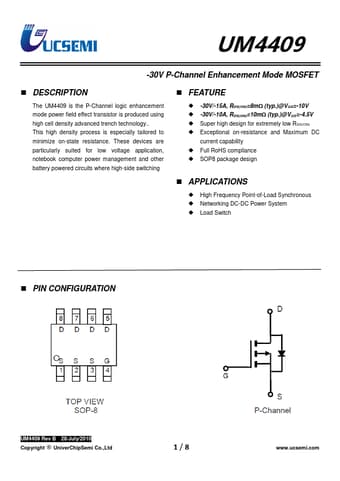

Official preview page of the UM4409 P-Channel Enhancement Mode MOSFET datasheet (UniverChipSemi).

Datasheet Details

Part number UM4409
Manufacturer UniverChipSemi
File Size 1.11 MB
Description P-Channel Enhancement Mode MOSFET
Datasheet download datasheet UM4409-UniverChipSemi.pdf
Additional preview pages of the UM4409 datasheet.

UM4409 Product details

Description

The UM4409 is the P-Channel logic enhancement mode power field effect transistor is produced using high cell density advanced trench technology.. FEATURE -30V/-15A, RDS(ON)=8mΩ (typ.)@VGS=-10V -30V/-10A, RDS(ON)=10mΩ (typ.)@VGS=-4.5V
