UCC3912 Programmable Hot Swap Power Manager

UCC3912 Description

ą D Integrated 0.15-Ω Power MOSFET D 3-V to 8-V Operation D Digital Programmable Current Limit from 0 A to 3 A D Electronic Circuit Breaker Function D.
The UCC3912 family of hot swap power managers provides complete power management, hot swap capability, and circuit breaker functions.

UCC3912 Features

* include an open drain FAULT output indicator, thermal shutdown, under voltage lockout, and a low thermal resistance small outline package. absolute maximum ratings over operating free-air temperature (unless otherwise noted)†} VIN

UCC3912 Applications

* which require fast output capacitor charging. When the output current is below the fault level, the output MOSFET is switched on with a nominal on resistance of 0.15 Ω. When the output current exceeds the fault level, but is less than the maximum sourcing level, the output remains switched on, but t

📥 Download Datasheet

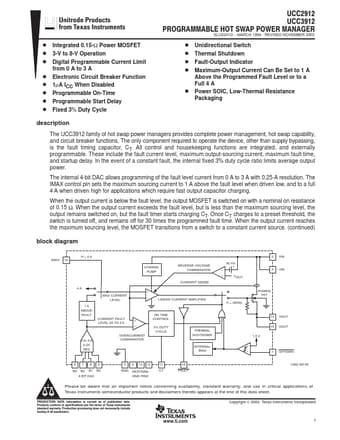

Preview of UCC3912 PDF
