UCC35706, UCC35705 HIGH-SPEED VOLTAGE MODE PULSE WIDTH MODULATOR

UCC35706 Description

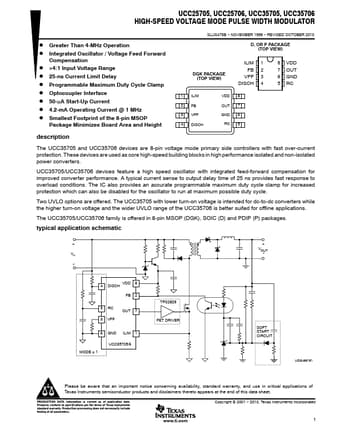

UCC25705, UCC25706, UCC35705, UCC35706 HIGH-SPEED VOLTAGE MODE PULSE WIDTH MODULATOR D Greater Than 4-MHz Operation D Integrated Oscillator / Voltage.
The UCC35705 and UCC35706 devices are 8-pin voltage mode primary side controllers with fast over-current protection.

UCC35706 Applications

* The UCC35705/UCC35706 family is offered in 8-pin MSOP (DGK), SOIC (D) and PDIP (P) packages. typical application schematic ++ VIN VO-U- T
* 4 DISCH VDD 8 FB 2 5 RC 3 VFF OUT 7 6 GND ILIM 1 MODE = 1 UCC35705/6 TPS2829 FET DRIVER SOFT START CIRCUIT UDG-99181 Please be aware that an

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: UCC35706, UCC35705. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details
