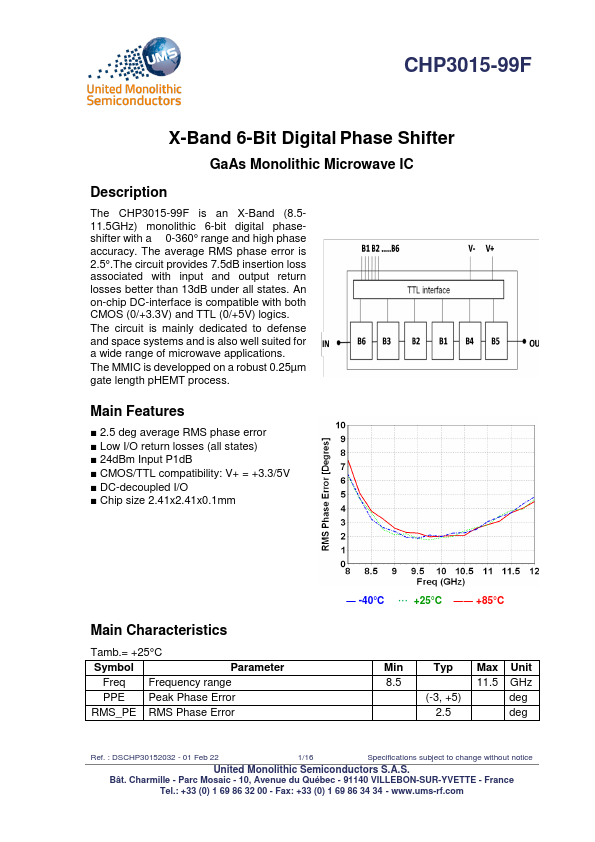

CHP3015-99F - X-Band 6-Bit Digital Phase Shifter

Description

The CHP3015-99F is an X-Band (8.511.5GHz) monolithic 6-bit digital phaseshifter with a 0-360° range and high phase accuracy.

The average RMS phase error is 2.5°.The circuit provides 7.5dB insertion loss associated with input and output return losses better than 13dB under all states.

Features

  • 2.5 deg average RMS phase error.
  • Low I/O return losses (all states).
  • 24dBm Input P1dB.
  • CMOS/TTL compatibility: V+ = +3.3/5V.
  • DC-decoupled I/O.
  • Chip size 2.41x2.41x0.1mm Main Characteristics Tamb. = +25°C Symbol Parameter Freq Frequency range PPE Peak Phase Error RMS_PE RMS Phase Error ― -40°C.
  • +25°C ―― +85°C Min Typ Max Unit 8.5 11.5 GHz (-3, +5) deg 2.5 deg Ref. : DSCHP30152032 - 01 Feb 22 1/16 Specifications subject to change with.

📥 Download Datasheet

Datasheet Details

Part number CHP3015-99F
Manufacturer United Monolithic Semiconductors
File Size 0.98 MB
Description X-Band 6-Bit Digital Phase Shifter
Datasheet download datasheet CHP3015-99F Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CHP High Stability Resistor Chips Vishay Intertechnology
CHP0502 High Stability Resistor Vishay Intertechnology
CHP0505 High Stability Resistor Vishay Intertechnology
CHP0603 Ultra-High Power Chip Resistors BOURNS
CHP0603 High Stability Resistor Vishay Intertechnology

Other Datasheets by United Monolithic Semiconductors

Part Number Description
CHP3015-QDG 8.5-10.5GHz Phase Shifter
CHP3010-QFG L-Band 6-Bit Digital Phase Shifter
CHP3010A98F GaAs Monolithic Microwave
CHP1102-98F S-Band 6-bit Phase Shifter
CHP1102-QGG S-Band 6-bit Phase Shifter

Full PDF Text Transcription

Click to expand full text

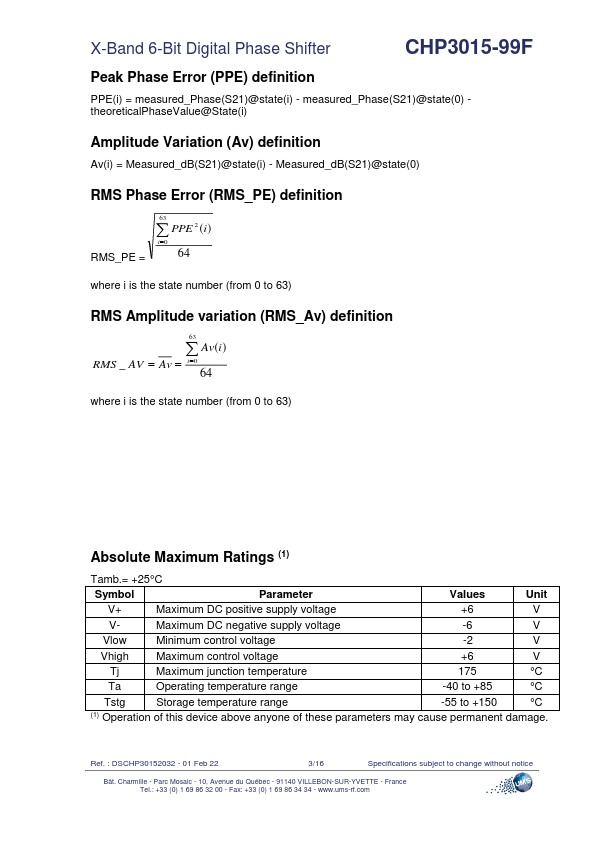

CHP3015-99F X-Band 6-Bit Digital Phase Shifter GaAs Monolithic Microwave IC Description The CHP3015-99F is an X-Band (8.511.5GHz) monolithic 6-bit digital phaseshifter with a 0-360° range and high phase accuracy. The average RMS phase error is 2.5°.The circuit provides 7.5dB insertion loss associated with input and output return losses better than 13dB under all states. An on-chip DC-interface is compatible with both CMOS (0/+3.3V) and TTL (0/+5V) logics. The circuit is mainly dedicated to defense and space systems and is also well suited for a wide range of microwave applications. The MMIC is developped on a robust 0.25µm gate length pHEMT process. Main Features ■ 2.5 deg average RMS phase error ■ Low I/O return losses (all states) ■ 24dBm Input P1dB ■ CMOS/TTL compatibility: V+ = +3.
