CHA6252-QFG - 13-15.5GHz Power Amplifier

United Monolithic Semiconductors

Datasheet Details

Part number	CHA6252-QFG
Manufacturer	United Monolithic Semiconductors
File Size	451.89 KB
Description	13-15.5GHz Power Amplifier
Datasheet	CHA6252-QFG_UnitedMonolithicSemiconductors.pdf

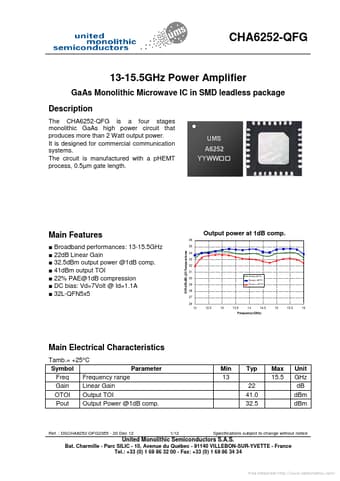

The CHA6252-QFG is a four stages monolithic GaAs high power circuit that produces more than 2 Watt output power.

36 Output power at 1dB comp. 35 OP1dB (dB) @3 Temperatures.
Broadband performances: 13-15.5GHz.
22dB Linear Gain.
32.5dBm output power @1dB comp.
41dBm output TOI.
22% PAE@1dB compression.
DC bias: Vd=7Volt @ Id=1.1A.
32L-QFN5x5 34 33 32 31 30 29 28 27 26 Temp=25°C Temp=-40°C Temp=+85°C 12 12.5 13 13.5 14 14.5 15 15.5 16 Frequency (GHz) Main Electrical Characteristics Tamb. = +25°C Symbol Parameter Freq Frequency range Gain Linear Gain OTOI Output.
