CHA2352-98F - Low Noise Amplifier

Name: CHA2352-98F
SKU: CHA2352-98F-1564788

United Monolithic Semiconductors

📥 Download Datasheet

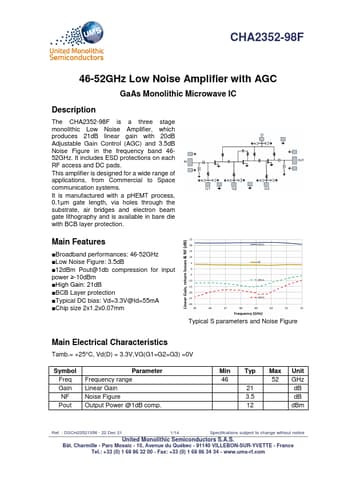

CHA2352-98F Datasheet Preview — Preview of CHA2352-98F PDF

Datasheet Details

Part number	CHA2352-98F
Manufacturer	United Monolithic Semiconductors
File Size	919.36 KB
Description	Low Noise Amplifier
Datasheet	CHA2352-98F-UnitedMonolithicSemiconductors.pdf

CHA2352-98F Product details

Description

The CHA2352-98F is a three stage monolithic Low Noise Amplifier, which produces 21dB linear gain with 20dB Adjustable Gain Control (AGC) and 3.5dB Noise Figure in the frequency band 4652GHz.

Features

Broadband performances: 46-52GHz.
Low Noise Figure: 3.5dB.
12dBm Pout@1db compression for input power ≥-10dBm.
High Gain: 21dB.
BCB Layer protection.
Typical DC bias: Vd=3.3V@Id=55mA.
Chip size 2x1.2x0.07mm Typical S parameters and Noise Figure Main Electrical Characteristics Tamb. = +25°C, Vd(D) = 3.3V,VG(G1=G2=G3) =0V Symbol Freq Gain NF Pout Parameter Frequency range Linear Gain Noise Figure Output Power @1dB comp. Min Typ Max Unit 46 52 GHz 21 dB 3.5 dB.
