UTCTEA2025A - 2.3W DUAL AUDIO POWER AMPLIFIER

Unisonic Technologies

The UTCTEA2025A by Unisonic Technologies is a 2.3W DUAL AUDIO POWER AMPLIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	UTCTEA2025A
Manufacturer	Unisonic Technologies
File Size	480.65 KB
Description	2.3W DUAL AUDIO POWER AMPLIFIER
Datasheet	UTCTEA2025A_UnisonicTechnologies.pdf

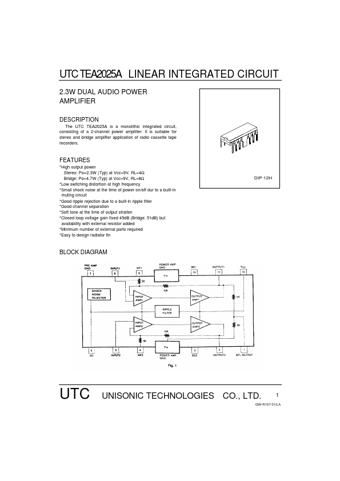

Additional preview pages of the UTCTEA2025A datasheet.

The UTC TEA2025A is a monolithic integrated circuit, consisting of a 2-channel power amplifier.

High output power Stereo: Po=2.3W (Typ) at Vcc=9V, RL=4Ω Bridge: Po=4.7W (Typ) at Vcc=9V, RL=8Ω.
Low switching distortion at high frequency.
Small shock noise at the time of power on/off dur to a built-in muting circuit.
Good ripple rejection due to a built-in ripple filter.
Good channel separation.
Soft tone at the time of output straiten.
Closed loop voltage gain fixed 45dB (Bridge: 51dB) but availability with external resistor added.
Minimum number of external.
