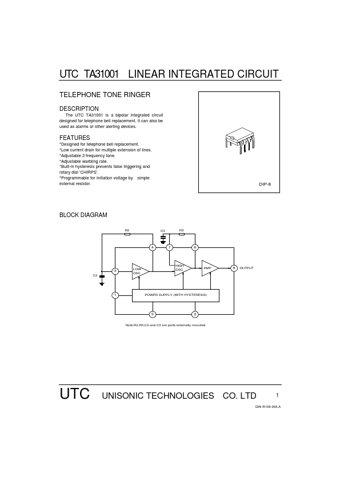

Additional preview pages of the UTCTA31001 datasheet.

UTCTA31001 Product details

Description

The UTC TA31001 is a bipolar integrated circuit designed for telephone bell replacement.

Features

Designed for telephone bell replacement.
Low current drain for multiple extension of lines.
Adjustable 2-frequency tone.
Adjustable warbling rate.
Built-in hysteresis prevents false triggering and rotary dial 'CHIRPS'.
Programmable for initiation voltage by simple external resistor. DIP-8 BLOCK.
