UTCTA31002A - TELEPHONE TONE RINGER

Unisonic Technologies

The UTCTA31002A by Unisonic Technologies is a TELEPHONE TONE RINGER. Below is the official datasheet preview.

📥 Download Datasheet

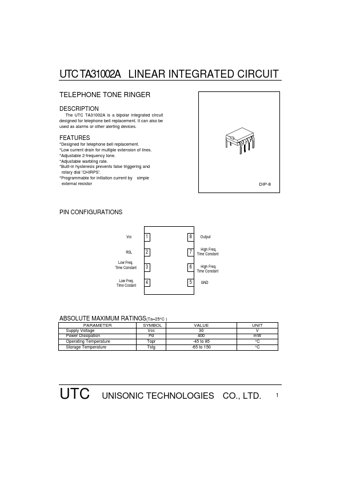

UTCTA31002A TELEPHONE TONE RINGER by Unisonic Technologies - Datasheet Preview — Official preview page of the UTCTA31002A TELEPHONE TONE RINGER datasheet (Unisonic Technologies).

Datasheet Details

Part number	UTCTA31002A
Manufacturer	Unisonic Technologies
File Size	33.20 KB
Description	TELEPHONE TONE RINGER
Datasheet	UTCTA31002A_UnisonicTechnologies.pdf
Additional preview pages of the UTCTA31002A datasheet.

UTCTA31002A Product details

Description

The UTC TA31002A is a bipolar integrated circuit designed for telephone bell replacement.

Features

Designed for telephone bell replacement.
Low current drain for multiple extension of lines.
Adjustable 2-frequency tone.
Adjustable warbling rate.
Built-in hysteresis prevents false triggering and rotary dial 'CHIRPS'.
Programmable for initiation current by simple external resistor DIP-8 PIN.
