TDA2822H - Dual Low Voltage Power Amplifier

Unisonic Technologies

The TDA2822H by Unisonic Technologies is a Dual Low Voltage Power Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

TDA2822H Dual Low Voltage Power Amplifier by Unisonic Technologies - Datasheet Preview — Official preview page of the TDA2822H Dual Low Voltage Power Amplifier datasheet (Unisonic Technologies).

Datasheet Details

Part number	TDA2822H
Manufacturer	Unisonic Technologies
File Size	288.18 KB
Description	Dual Low Voltage Power Amplifier
Datasheet	TDA2822H_UnisonicTechnologies.pdf

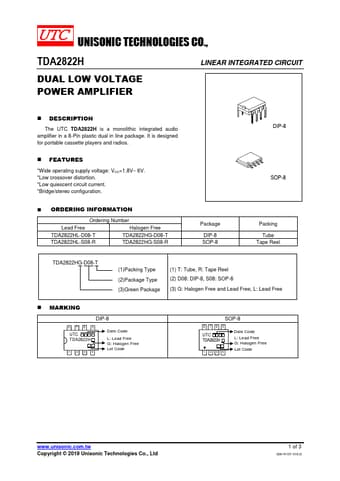

Additional preview pages of the TDA2822H datasheet.

TDA2822H Product details

Description

The UTC TDA2822H is a monolithic integrated audio amplifier in a 8-Pin plastic dual in line package.

Features

S.
Wide operating supply voltage: VCC=1.8V~ 6V.
Low crossover distortion.
Low quiescent circuit current.
Bridge/stereo configuration.
