TDA2822 - DUAL POWER AMPLIFIER

📥 Download Datasheet

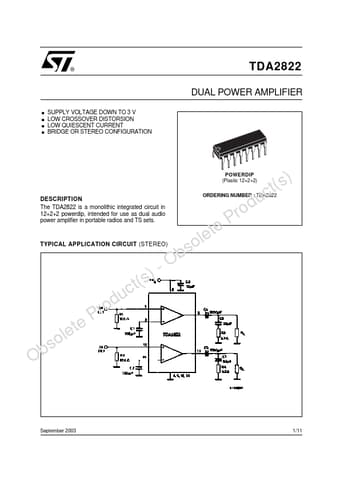

Preview of TDA2822 PDF
datasheet Preview Page 2 datasheet Preview Page 3

TDA2822 Product details

Description

duThe TDA2822 is a monolithic integrated circuit in ro12+2+2 powerdip, intended for use as dual audio power amplifier in portable radios and TS sets.Obsolete Product(s) - Obsolete PTYPICAL APPLICATION CIRCUIT (STEREO) POWERDIP (Plastic 12+2+2) ORDERING NUMBER : TDA2822 September 2003 1/11 TDA2822 PIN CONNECTION (top view) INPUT+(1) 1 16 INPUT+(2) N.C.2 15 N.C.INPUT-(1) 3 14 INPUT-(2) GND 4 13 GND GND 5 12 GND OUTPUT(1) 6 11 OUTPUT(2) N.C.7 10 N.C.+VS 8 9 N.C.t(s
