UT2305-H - P-CHANNEL POWER MOSFET

📥 Download Datasheet

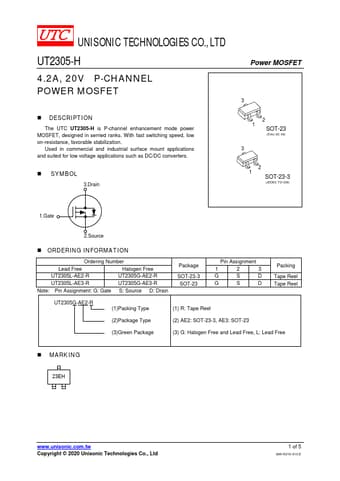

Preview of UT2305-H PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number UT2305-H
Manufacturer UTC
File Size 243.22 KB
Description P-CHANNEL POWER MOSFET
Datasheet download datasheet UT2305-H-UTC.pdf

UT2305-H Product details

Description

The UTC UT2305-H is P-channel enhancement mode power MOSFET, designed in serried ranks.With fast switching speed, low on-resistance, favorable stabilization.Used in commercial and industrial surface mount applications and suited for low voltage applications such as DC/DC converters. SYMBOL 3.Drain Power MOSFET 3 2 1 SOT-23 (EIAJ SC-59) 3 2 1 SOT-23-3 (JEDEC TO-236) 1.Gate 2.Source ORDERING INFORMATION Ordering Number Lead Free Halogen Free UT2305L-AE2-R UT2305G-AE2-R UT23
