L1131B - LOW NOISE 200mA LDO REGULATOR

General Description

The UTC L1131B is a COMS positive linear regulator.

One of it’s feature is the very low quiescent current typical as low as 1.5μA and its dropout voltage is extremely low with 200mA output current, and high ripple rejection.

Key Features

  • r>.
  • Low supply current Typ. 1.5μA.
  • Standby mode Typ. 0.1μA.
  • Output Voltage Range 1.2V ~ 5.0V.
  • Built-in fold back protection circuit.
  • Ceramic capacitors are recommended to be used with this IC CIN=COUT=1μF.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
L1131A LOW NOISE 150mA LDO REGULATOR UNISONIC TECHNOLOGIES
L11354-01 Photo IC HAMAMATSU
L11398 High-Power QCW Laser Diode Stack Module HAMAMATSU
L113EDT 2 X 5 MM RECTANGULAR SOLID LAMPS ETC
L113GDT 2 X 5 MM RECTANGULAR SOLID LAMPS ETC

Other Datasheets by Unisonic Technologies

Part Number Description
L1131C LOW NOISE 150mA LDO REGULATOR
L1119 LOW DROPOUT REGULATORS
L11831A ULTRA LOW DROPOUT REGULATOR
L11831B ULTRA LOW DROPOUT REGULATOR
L11831C ULTRA LOW DROPOUT REGULATOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

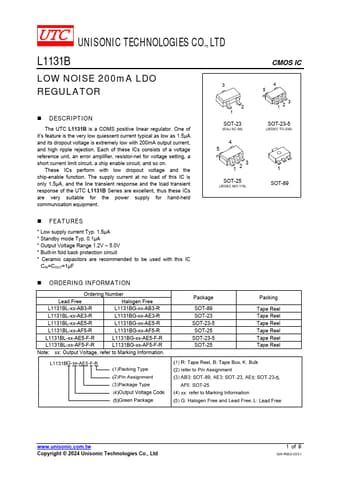

UNISONIC TECHNOLOGIES CO., LTD L1131B LOW NOISE 200mA LDO REGULATOR 3  DESCRIPTION The UTC L1131B is a COMS positive linear regulator. One of it’s feature is the very low quiescent current typical as low as 1.5μA and its dropout voltage is extremely low with 200mA output current, and high ripple rejection. Each of these ICs consists of a voltage reference unit, an error amplifier, resistor-net for voltage setting, a short current limit circuit, a chip enable circuit, and so on. These ICs perform with low dropout voltage and the chip-enable function. The supply current at no load of this IC is only 1.
