BAS70AWG, BAS70WG SCHOTTKY BARRIER DIODES

BAS70AWG Description

UNISONIC TECHNOLOGIES CO., LTD BAS70xW SCHOTTKY BARRIER DIODES DIODE * .
Planar Schottky barrier diodes encapsulated in the SOT-323 small plastic SMD package.

BAS70AWG Features

* Low Turn-on voltage
* Fast switching
* Ultra-small surface mount package
* Also available in lead free version
* ORDERING INFORMATION Ordering Number BAS70WG-AL3-R BAS70AWG-AL3-R BAS70CWG-AL3-R BAS70SWG-AL3-R Note: Pin Assignment: A: Anode K: Cathode x: NC Package SOT-323

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BAS70AWG, BAS70WG. Please refer to the document for exact specifications by model.

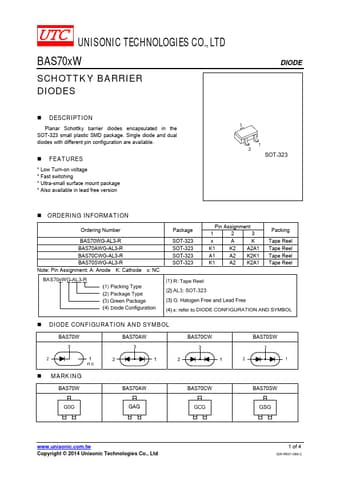

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAS70AWG, BAS70WG
Manufacturer
UTC
File Size
220.87 KB
Datasheet
BAS70WG-UTC.pdf
Description
SCHOTTKY BARRIER DIODES
Note
This datasheet PDF includes multiple part numbers: BAS70AWG, BAS70WG.
Please refer to the document for exact specifications by model.
