BAS70AW, BAS70W SURFACE MOUNT SCHOTTKY DIODES

BAS70AW Description

.004(.10)MIN..087(2.2) .078(2.0) UPM BAS70W/AW/CW/SW SURFACE MOUNT SCHOTTKY DIODES Voltage Range 70 Volts Current 0.2 Ampers .

BAS70AW Features

* Fast switching speed
* Surface mount package ideally suited for automatic insertion Electrical identical standard JEDEC
* High conductor
* Both normal and Pb free product are available : Normal : 80~95% Sn, 5~20% Pb Pb free: 98.5% Sn above SOT-323 .087(2.2) .070(1.8) .054(1.35) .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BAS70AW, BAS70W. Please refer to the document for exact specifications by model.

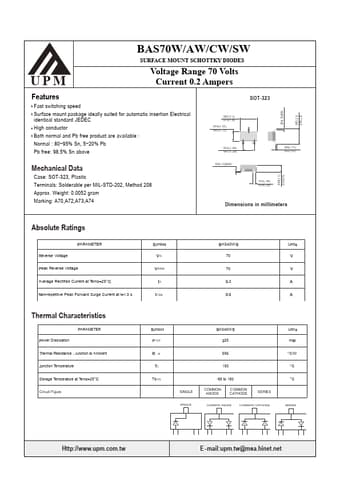

datasheet Preview Page 2 datasheet Preview Page 3
