82C59, 82Cxx VOLTAGE DETECTORS

82C59 Description

UNISONIC TECHNOLOGIES CO., LTD 82CXX VOLTAGE DETECTORS 3 CMOS IC 4 5 2 1 * .
The UTC 82CXX series are good performance 3-terminals voltage detectors and manufactured by CMOS technologies with highly accurate, low power consump.

82C59 Features

* 1
* High-accuracy detection voltage : ±2%
* Detect voltage range : 0.9V to 6.2V in 0.1V increments
* Detect voltage temperature characteristics: TYP. ±100ppm/°С.
* Wide operating voltage range : 0.7V to 10.0V
* Low current consumption : TYP 0.7μA(at VIN=1.5V) TO-92
* ORDER

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 82C59, 82Cxx. Please refer to the document for exact specifications by model.

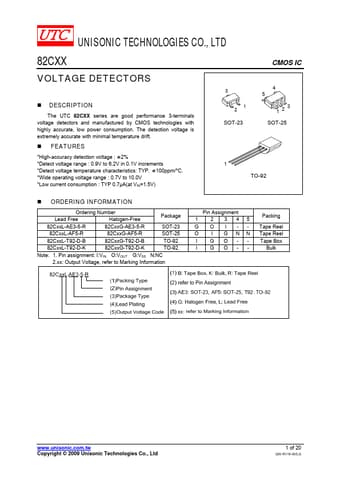

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
82C59, 82Cxx
Manufacturer
UTC
File Size
501.59 KB
Datasheet
82Cxx_UTC.pdf
Description
VOLTAGE DETECTORS
Note
This datasheet PDF includes multiple part numbers: 82C59, 82Cxx.
Please refer to the document for exact specifications by model.
