82C52 CMOS Serial Controller Interface

82C52 Description

82C52 March 1997 CMOS Serial Controller Interface .
The Intersil 82C52 is a high performance programmable Universal Asynchronous Receiver/Transmitter (UART) and Baud Rate Generator (BRG) on a single chi.

82C52 Features

* Single Chip UART/BRG
* DC to 16MHz (1M Baud) Operation
* Crystal or External Clock Input
* On-Chip Baud Rate Generator - 72 Selectable Baud Rates
* Interrupt Mode with Mask Capability
* Microprocessor Bus Oriented Interface
* 80C86 Compatible

📥 Download Datasheet

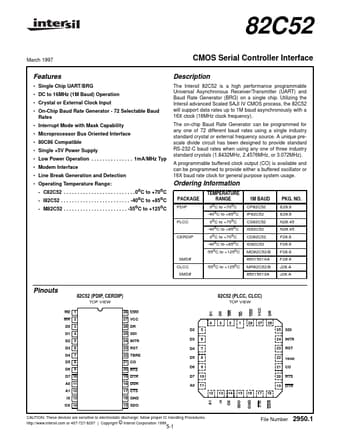

Preview of 82C52 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
82C52
Manufacturer
Intersil Corporation
File Size
255.61 KB
Datasheet
82C52_IntersilCorporation.pdf
Description
CMOS Serial Controller Interface
