1SMC5348 - SURFACE MOUNT SILICON ZENER DIODES

1SMC5348 Description

UPM 1SMC5348 SERIES SURFACE MOUNT SILICON ZENER DIODES Voltage Range 11-39 Volts Power 5.0mWatts .

1SMC5348 Applications

* in order to optimize board space.
* Low profile package
* Built-in strain relief
* Glass passivated junction
* Low inductance
* Typical ID less than 1.0 above 13V
* Plastic package has Underwriters Laboratory Flammability Classification 94V-O .128(3.25) .108(2.75) SMC/DO-21

📥 Download Datasheet

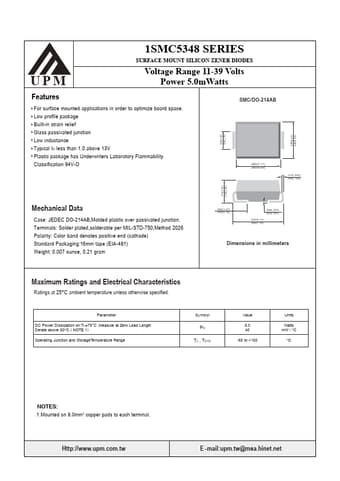

Preview of 1SMC5348 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1SMC5348
Manufacturer
UPM
File Size
554.78 KB
Datasheet
1SMC5348-UPM.pdf
Description
SURFACE MOUNT SILICON ZENER DIODES
