SP3232EEN two receivers and two drivers

SP3232EEN Description

1..
The UMW SP3232EEN has two receivers and two drivers, and a dual charge-pump circuit.

SP3232EEN Features

* Exceeds ±8KV ESD Protection(HBM) for RS-232 I/O Pins Meets the Requirements of TIA/EIA-232-F and ITU V.28 Standards Operates With 3.0V to 5.5V VCC Supply Operates Up To 250kbit/s Data Rate Two Drivers and Two Receivers External Capacitors 4×0.1μF Accepts 5.0V Logic Input With 3.3V Supply DIN1 11 DI

📥 Download Datasheet

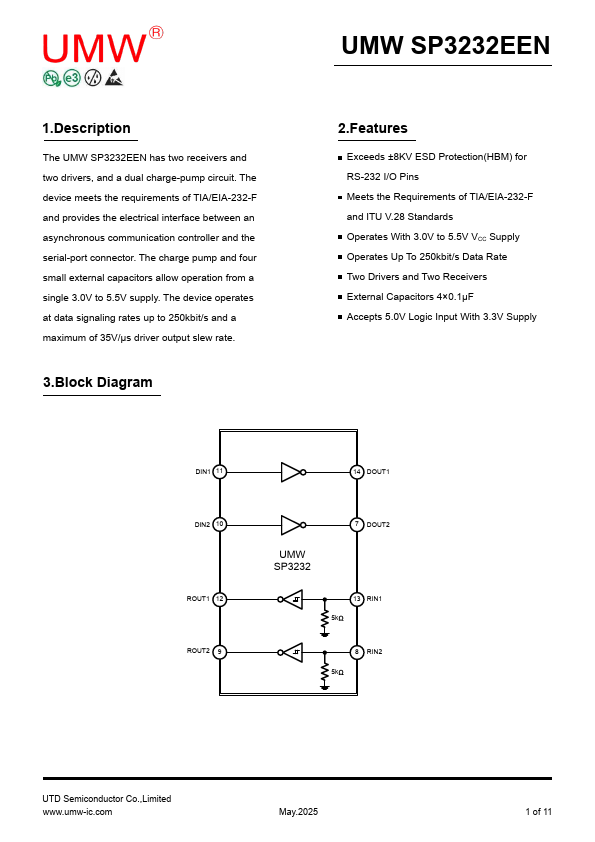

Preview of SP3232EEN PDF

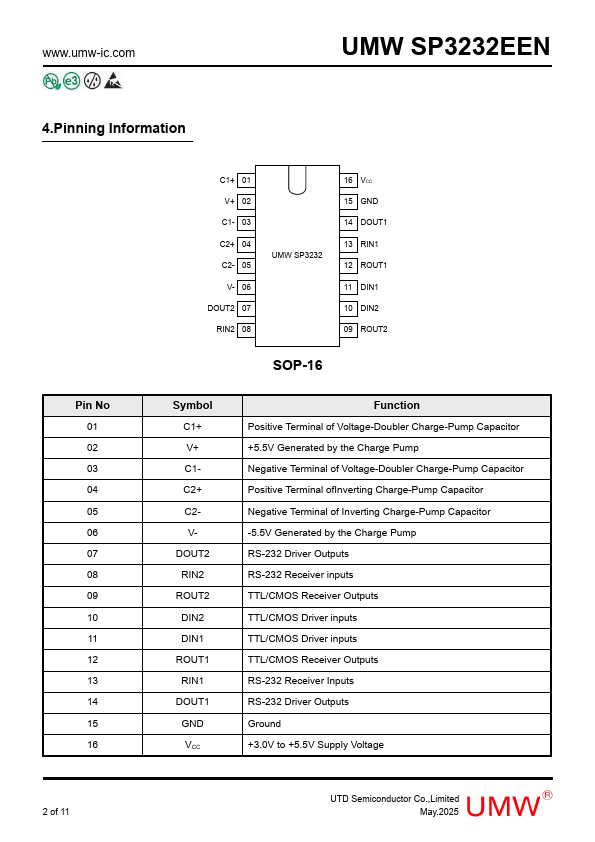

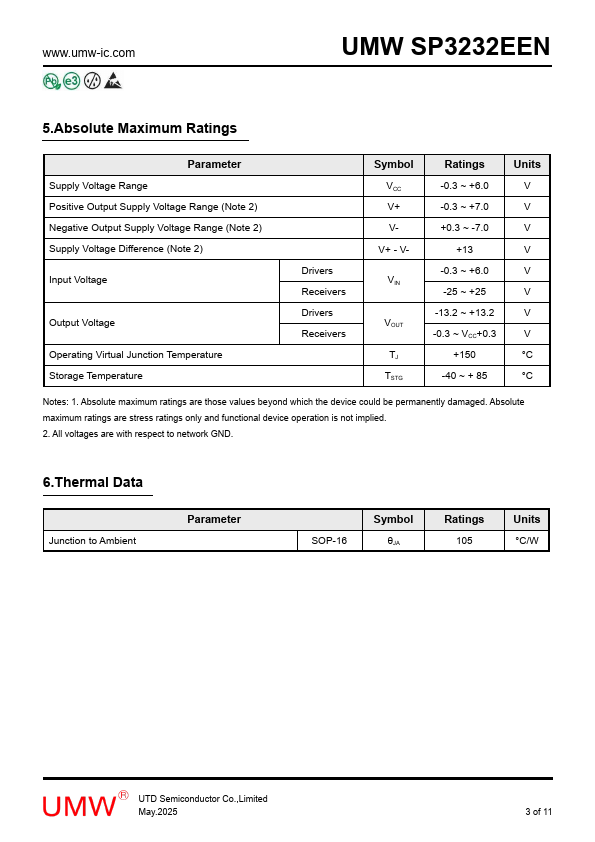

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SP3232EEN
Manufacturer
UMW
File Size
186.39 KB
Datasheet
SP3232EEN-UMW.pdf
Description
two receivers and two drivers
