FDS3672 100V N-ChanneI MOSFET

FDS3672 Description

UMW FDS3672 100V N-ChanneI MOSFET 1..
GATE SOURCE DRAIN SOP-8 5678 D D D D S S S G 1234 D G S 4.

FDS3672 Applications

* DC/DC converters and Off-Line UPS Distributed Power Architectures and VRMs Low Qrr Body Diode Optimized efficiency at high frequencies UIS Capability (Single Pulse and Repetitive Pulse) Primary Switch for 24V and 48V Systems High Voltage Synchronous Rectifier 3.Pinning information Pin 4 1,2,3 5,6

📥 Download Datasheet

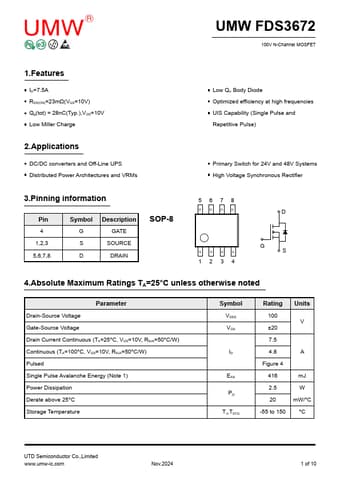

Preview of FDS3672 PDF

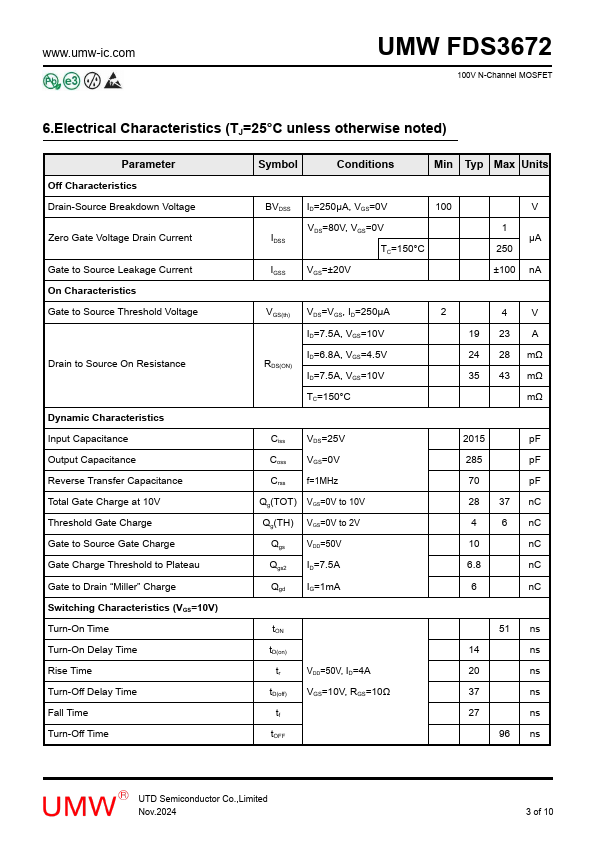

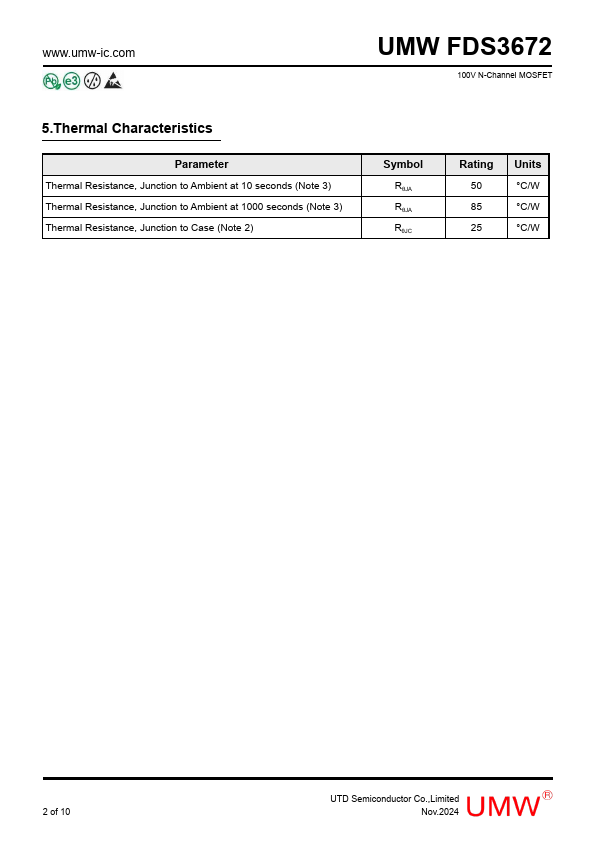

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FDS3672
Manufacturer
UMW
File Size
1.54 MB
Datasheet
FDS3672-UMW.pdf
Description
100V N-ChanneI MOSFET
