FDS3682 - N-Channel MOSFET

Fairchild Semiconductor

📥 Download Datasheet

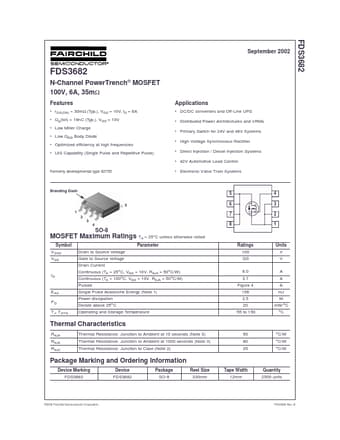

FDS3682 Datasheet Preview — Preview of FDS3682 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FDS3682
Manufacturer	Fairchild Semiconductor
File Size	277.23 KB
Description	N-Channel MOSFET
Datasheet	FDS3682_FairchildSemiconductor.pdf

FDS3682 Product details

Features

r DS(ON) = 30mΩ (Typ. ), VGS = 10V, ID = 6A.
Qg(tot) = 19nC (Typ. ), VGS = 10V.
Low Miller Charge.
Low QRR Body Diode.
Optimized efficiency at high frequencies.
UIS Capability (Single Pulse and Repetitive Pulse).
