FDS3672 - N-Channel MOSFET

Fairchild Semiconductor

📥 Download Datasheet

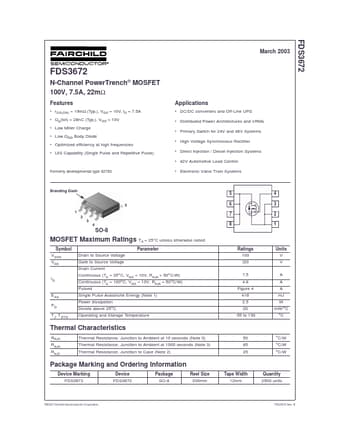

FDS3672 Datasheet Preview — Preview of FDS3672 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FDS3672
Manufacturer	Fairchild Semiconductor
File Size	266.42 KB
Description	N-Channel MOSFET
Datasheet	FDS3672_FairchildSemiconductor.pdf

FDS3672 Product details

Features

r DS(ON) = 19mΩ (Typ. ), VGS = 10V, ID = 7.5A.
Qg(tot) = 28nC (Typ. ), VGS = 10V.
Low Miller Charge.
Low QRR Body Diode.
Optimized efficiency at high frequencies.
UIS Capability (Single Pulse and Repetitive Pulse).
