AZ5123-01H - TVS

Product Overview

Part number	AZ5123-01H
Manufacturer	UMW
File Size	142.23 KB
Description	TVS
Datasheet	AZ5123-01H Datasheet
Additional preview pages of the AZ5123-01H datasheet.

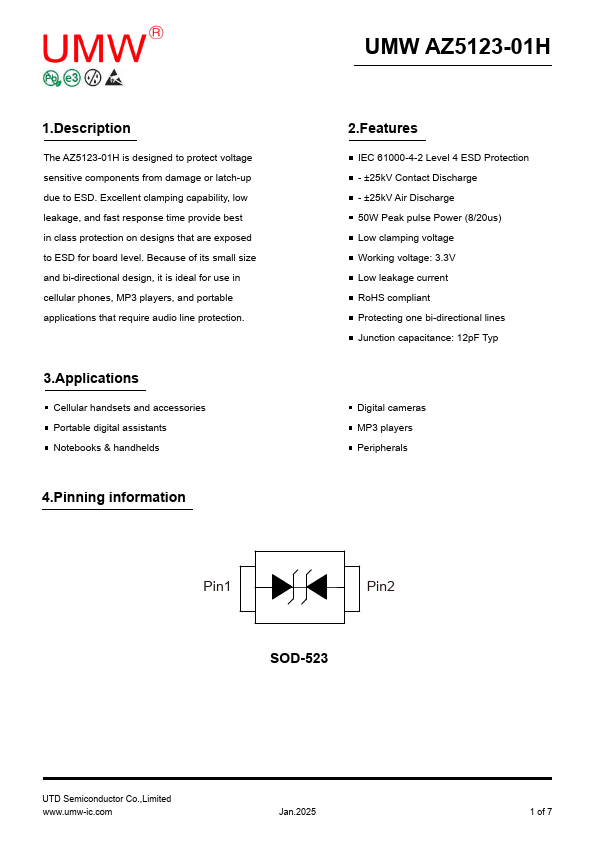

The AZ5123-01H is designed to protect voltage sensitive components from damage or latch-up due to ESD.

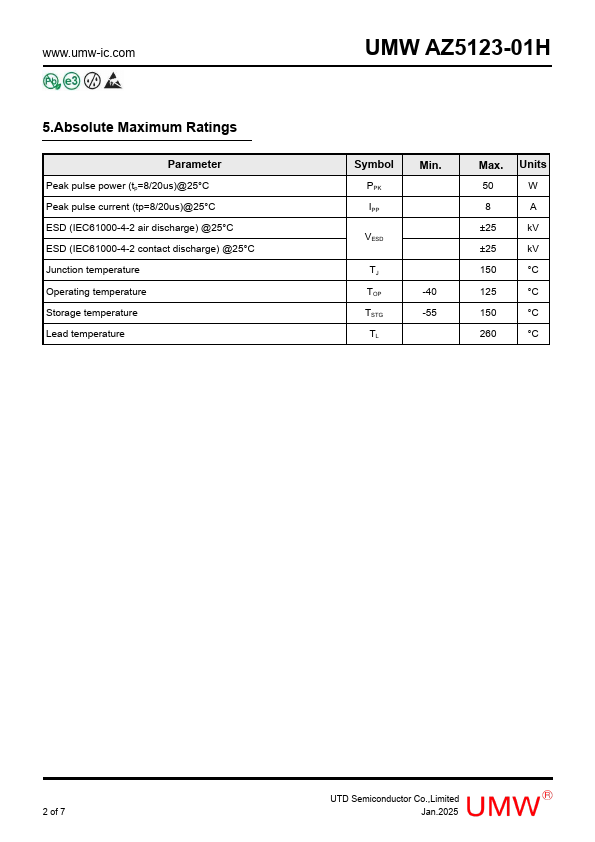

IEC 61000-4-2 Level 4 ESD Protection - ±25kV Contact Discharge - ±25kV Air Discharge 50W Peak pulse Power (8/20us) Low clamping voltage Working voltage: 3.3V Low leakage current RoHS compliant Protecting one bi-directional lines Junction capacitance: 12pF Typ Digital cameras MP3 players Peripherals Pin1 Pin2 SOD-523 UTD Semiconductor Co. ,Limited www. umw-ic. com Jan.2025 1 of 7 www. umw-ic. com 5.Absolute Maximum Ratings Parameter Peak pulse power (tp=8/20us)@25°C Peak pulse current (tp=8/20u.
