AZ5123-01F TVS Diode

AZ5123-01F Description

.

AZ5123-01F Features

* Protects one data line
* Ultra low leakage: nA level
* Operating voltage: 3.3V
* Ultra low clamping voltage
* Complies with following standards:
* IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
* IEC61000-4-5 (Lightning) 8A (8/20

AZ5123-01F Applications

* Cellular Handsets and Accessories
* Personal Digital Assistants
* Notebooks and Handhelds
* Portable Instrumentation
* Digital Cameras
* Peripherals
* Audio Players
* Keypads, Side Keys, LCD Displays Mechanical Characteristics
* Package: DFN1006
* Lead Finis

📥 Download Datasheet

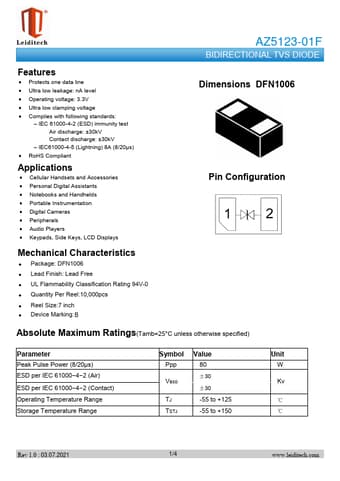

Preview of AZ5123-01F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AZ5123-01F
Manufacturer
Leiditech
File Size
2.77 MB
Datasheet
AZ5123-01F-Leiditech.pdf
Description
TVS Diode
