AZ5725-01F - TVS Diode

Product Overview

Leiditech

📥 Download Datasheet

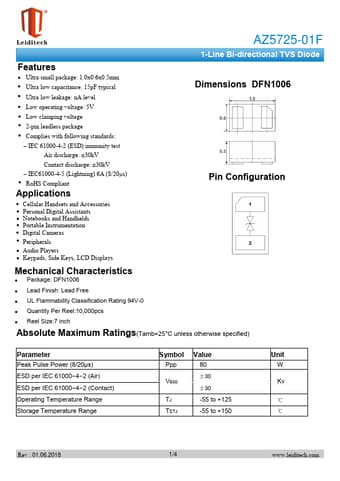

AZ5725-01F TVS Diode by Leiditech - Datasheet Preview — Datasheet preview – AZ5725-01F

Datasheet Details

Part number	AZ5725-01F
Manufacturer	Leiditech
File Size	1.72 MB
Description	TVS Diode
Datasheet	AZ5725-01F Datasheet
Additional preview pages of the AZ5725-01F datasheet.

Product details

Features

Ultra small package: 1.0x0.6x0.5mm.
Ultra low capacitance: 15pF typical.
Ultra low leakage: nA level.
Low operating voltage: 5V.
Low clamping voltage.
2-pin leadless package.
Complies with following standards:.
IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV.
IEC61000-4-5 (Lightning) 6A (8/20μs).
RoHS Compliant.
