SI2304A - N-Channel 30-V MOSFET

The SI2304A by UDF is a N-Channel 30-V MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	SI2304A
Manufacturer	UDF
File Size	1.59 MB
Description	N-Channel 30-V MOSFET
Datasheet	SI2304A-UDF.pdf

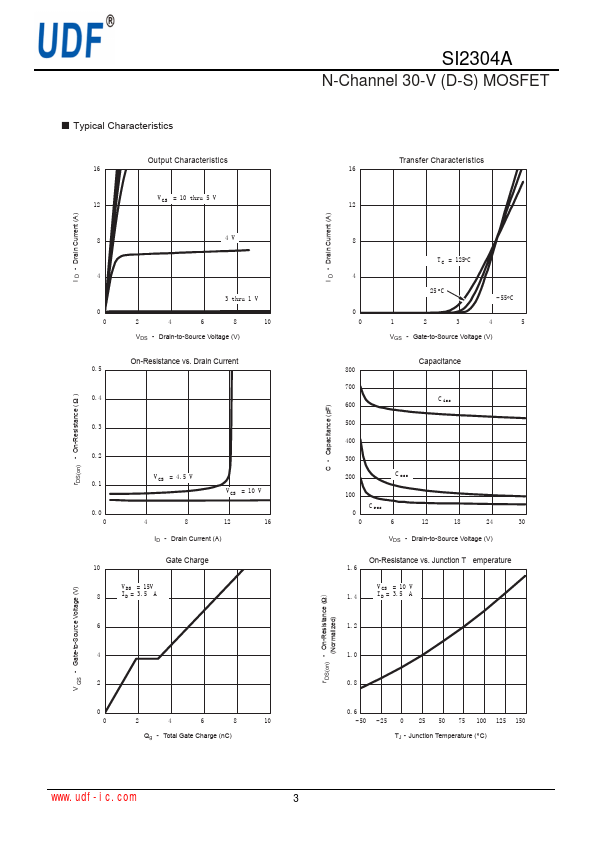

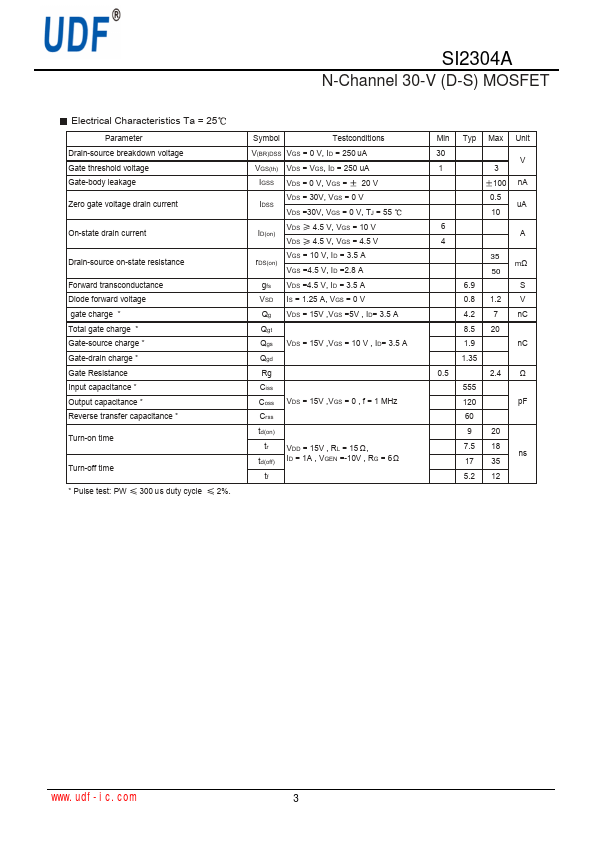

Additional preview pages of the SI2304A datasheet.

s.
VDS (V) = 30V.
RDS(ON) ＜ 35mΩ (VGS =-10V)，ID=3.6A.
RDS(ON) ＜ 50 mΩ (VGS =-4.5V)，ID=3A SI2304A N-Channel 30-V (D-S) MOSFET SOT.
23 Equivalent Circuit D G S 1. GATE 2. SOURCE 3. DRAIN Absolute Maximum Ratings Ta = 25 Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Tj=150℃.
1 Pulsed Drain Current Ta=25℃ Ta=70℃ Power Dissipation.
1 Thermal Resistance. Junction- to-Ambient Junction Temperature Storage Temperature Range Ta=25℃ Ta.
