MD59-0022SMB - PCS CDMA Upconverter / Driver 1710 1710.1910 MHz

Product Overview

Tyco

📥 Download Datasheet

MD59-0022SMB PCS CDMA Upconverter / Driver 1710 1710.1910 MHz by Tyco - Datasheet Preview — Datasheet preview – MD59-0022SMB

Datasheet Details

Part number	MD59-0022SMB
Manufacturer	Tyco
File Size	127.83 KB
Description	PCS CDMA Upconverter / Driver 1710 1710.1910 MHz
Datasheet	MD59-0022SMB Datasheet

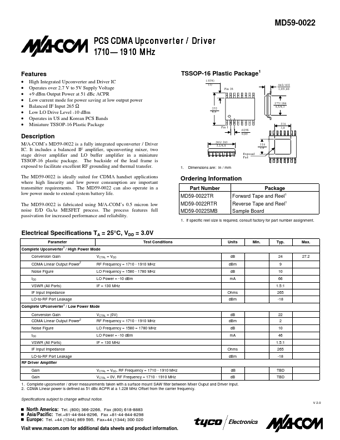

Additional preview pages of the MD59-0022SMB datasheet.

Product details

Description

M/A-COM’s MD59-0022 is a fully integrated upconverter / Driver IC.

Features

High Integrated Upconverter and Driver IC Operates over 2.7 V to 5V Supply Voltage +9 dBm Output Power at 51 dBc ACPR Low current mode for power saving at low output power Balanced IF Input 265 Ω Low LO Drive Level -10 dBm Operates in US and Korean PCS Bands Miniature TSSOP-16 Plastic Package TSSOP-16 Plastic Package1 (.039) (1) Pin 16 .041/.031 1,05/,80 .252 6,4 .177/.169 4,5/4,3 Pin 1 .0256 0,65 .201/.193 5,1/4.
