MD59-0021RTR - PCS CDMA LNA / Downconverter 1.8-2.0 GHz

Description

M/A-COM’s MD59-0021 is a fully integrated downconverter IC with LNA, RF amplifier, downconverting mixer, IF amplifier and LO buffer amplifier in a miniature TSSOP-16 plastic package with exposed metal lead frame backside for improved high frequency grounding.

Features

  • High Integrated LNA and Downconverter Operates over 2.7 V to 5V Supply Voltage Low Noise Figure < 2.7 dB High Input Intercept Point -12 dBm Optional Control of LNA IP3 Low LO Drive Level -10 dBm Operates in US and Korean PCS Bands Miniature TSSOP-16 Plastic Package TSSOP-16 Plastic Package1 (.039) (1) Pin 16 .041/.031 1,05/,80 .252 6,4 .177/.169 4,5/4,3 Pin 1 .0256 0,65 .201/.193 5,1/4,9 Exposed Pad .118 3,0 De.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MD5 SILICON MINI BRIDGE RECTIFIER Rectron Semiconductor
MD5-15120AS-AA-CV DC Motor Transmotec
MD5-1980AS-AA-CV DC Motor Transmotec
MD5-2445AS-BB-C DC Motor Transmotec
MD5-2450AS-AA-C DC Motor Transmotec

Other Datasheets by Tyco Electronics (now TE Connectivity)

Part Number Description
MD59-0021 PCS CDMA LNA / Downconverter 1.8-2.0 GHz
MD59-0021SMB PCS CDMA LNA / Downconverter 1.8-2.0 GHz
MD59-0021TR PCS CDMA LNA / Downconverter 1.8-2.0 GHz
MD59-0022 PCS CDMA Upconverter / Driver 1710 1710.1910 MHz
MD59-0022RTR PCS CDMA Upconverter / Driver 1710 1710.1910 MHz

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

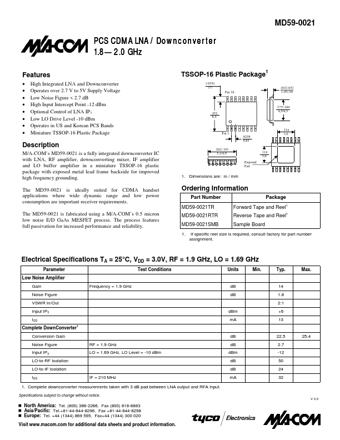

MD59-0021 PCS CDMA LNA / Downconverter 1.8— 1.8 — 2.0 GHz Features • • • • • • • • High Integrated LNA and Downconverter Operates over 2.7 V to 5V Supply Voltage Low Noise Figure < 2.7 dB High Input Intercept Point -12 dBm Optional Control of LNA IP3 Low LO Drive Level -10 dBm Operates in US and Korean PCS Bands Miniature TSSOP-16 Plastic Package TSSOP-16 Plastic Package1 (.039) (1) Pin 16 .041/.031 1,05/,80 .252 6,4 .177/.169 4,5/4,3 Pin 1 .0256 0,65 .201/.193 5,1/4,9 Exposed Pad .118 3,0 Description M/A-COM’s MD59-0021 is a fully integrated downconverter IC with LNA, RF amplifier, downconverting mixer, IF amplifier and LO buffer amplifier in a miniature TSSOP-16 plastic package with exposed metal lead frame backside for improved high frequency grounding.
