MAMDCC0002-DC000 - Dual Linear Driver for Vector Modulators

Product Overview

Tyco

Datasheet Details

Part number	MAMDCC0002-DC000
Manufacturer	Tyco
File Size	340.21 KB
Description	Dual Linear Driver for Vector Modulators
Datasheet	MAMDCC0002-DC000 Datasheet

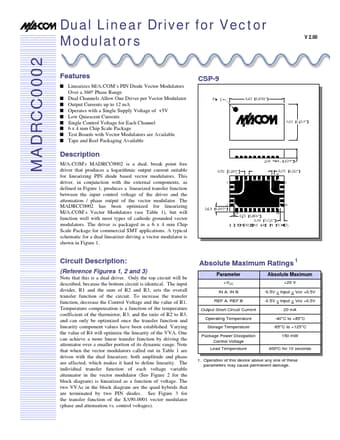

Additional preview pages of the MAMDCC0002-DC000 datasheet.

Product details

Description

M/A-COM's MADRCC0002 is a dual, break point free driver that produces a logarithmic output current suitable for linearizing PIN diode based vector modulators.

Features

n n n n n n n n n CSP-9 Linearizes M/A-COM’s PIN Diode Vector Modulators Over a 360° Phase Range Dual Channels Allow One Driver per Vector Modulator Output Currents up to 12 mA Operates with a Single Supply Voltage of +5V Low Quiescent Currents Single Control Voltage for Each Channel 6 x 4 mm Chip Scale Package Test Boards with Vector Modulators are Available Tape and Reel Packaging Available.
