MAMF-011180 - High Power Switch

Product Overview

MACOM

📥 Download Datasheet

MAMF-011180 High Power Switch by MACOM - Datasheet Preview — Datasheet preview – MAMF-011180

Datasheet Details

Part number	MAMF-011180
Manufacturer	MACOM
File Size	1.87 MB
Description	High Power Switch
Datasheet	MAMF-011180 Datasheet

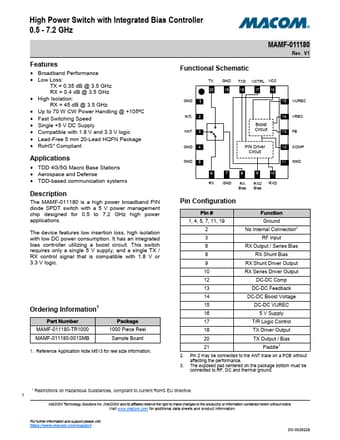

Additional preview pages of the MAMF-011180 datasheet.

Product details

Description

The MAMF-011180 is a high power broadband PIN diode SPDT switch with a 5 V power management chip designed for 0.5 to 7.2 GHz high power applications.

Features

Broadband Performance.
Low Loss: TX = 0.35 dB @ 3.5 GHz RX = 0.4 dB @ 3.5 GHz.
High Isolation: RX = 45 dB @ 3.5 GHz.
Up to 70 W CW Power Handling @ +105ºC.
Fast Switching Speed.
Single +5 V DC Supply.
Compatible with 1.8 V and 3.3 V logic.
Lead-Free 5 mm 20-Lead HQFN Package.
RoHS.
Compliant.
