MAAM12032 Low Noise Amplifier 1.7 - 2.0 GHz

MAAM12032 Description

Low Noise Amplifier 1.7 - 2.0 GHz .
M/A-COM’s MAAM12032 is a high performance GaAs MMIC low noise amplifier in a low cost SOIC 8-lead surface mount plastic package.

MAAM12032 Features

* q q q q q q q MAAM12032 SO-8 PIN 8 .1497-.1574 (3.80-4.00) -B.2284-.2440 (5.80-6.20) .010(0.25) M B M Low Noise Figure: 1.80 dB High Gain: 13 dB Low Power Consumption: 3 to 5 V, 5 mA High Dynamic Range DC Decoupled RF Input and Output No External RF Tuning Elements Necessary Low Cost SOIC 8 Plasti

MAAM12032 Applications

* include receiver front ends in the Japanese Personal Handy Phone Service (PHS), Private Branch Exchange (PBX) and Personal Communications Systems and Networks (PCS, PCN) markets, as well as standard gain blocks, buffer amps, driver amps and IF amps in both fixed and portable systems. M/A-COM’s MAAM12

📥 Download Datasheet

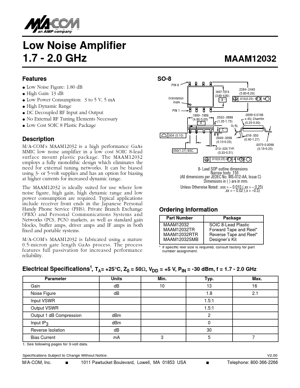

Preview of MAAM12032 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAAM12032
Manufacturer
Tyco
File Size
116.32 KB
Datasheet
MAAM12032_TycoElectronics.pdf
Description
Low Noise Amplifier 1.7 - 2.0 GHz
