The MAAM12021 is Low Noise Amplifier 1.5 - 1.6 GHz designed by Tyco.

Product Overview

Tyco

Part number	MAAM12021
Manufacturer	Tyco
File Size	117.87 KB
Description	Low Noise Amplifier 1.5 - 1.6 GHz
Datasheet	MAAM12021_TycoElectronics.pdf

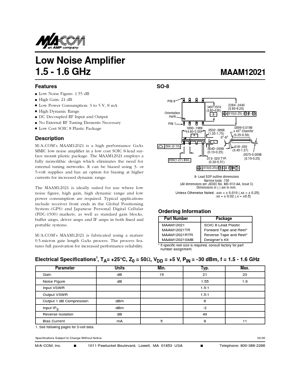

Additional preview pages of the MAAM12021 datasheet.

M/A-COM’s MAAM12021 is a high performance GaAs MMIC low noise ampliﬁer in a low cost SOIC 8-lead surface mount plastic package.

q q q q q q q MAAM12021 SO-8 PIN 8 Orientation mark PIN 1 .1890-.1968 (4.80-5.00) -A.004 (0.10) .0532-.0688 (1.35-1.75) 0°-8° -C.0040-.0098 (0.10-0.25) .013-.020 TYP. (0.33-0.51) .0099-0.0196 x 45° Chamfer (0.25-0.50) .016-.050 (0.40-1.27) .0075-0.0098 (0.19-0.25) .1497-.1574 (3.80-4.00) -B.2284-.2440 (5.80-6.20) .010(0.25) M B M Low Noise Figure: 1.55 dB High Gain: 21 dB Low Power Consumption: 3 to 5 V, 8 mA High Dynamic Range DC Decoupled RF Input and Output No External RF Tuning Elements Ne.
