MA02205AF - 3.6V 0.5W RF Power Amplifier IC for DECT

Product Overview

Tyco

📥 Download Datasheet

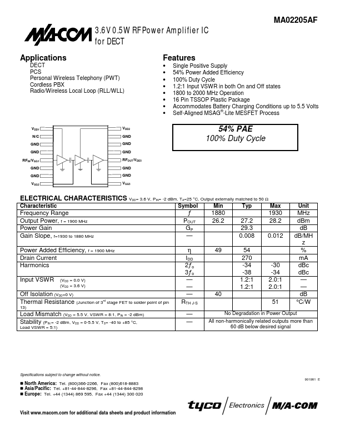

MA02205AF 3.6V 0.5W RF Power Amplifier IC for DECT by Tyco - Datasheet Preview — Datasheet preview – MA02205AF

Datasheet Details

Part number	MA02205AF
Manufacturer	Tyco
File Size	245.07 KB
Description	3.6V 0.5W RF Power Amplifier IC for DECT
Datasheet	MA02205AF Datasheet
Additional preview pages of the MA02205AF datasheet.

Product details

Features

=.
=.
=.
=.
=.
=.
=.
= Single Positive Supply 54% Power Added Efficiency 100% Duty Cycle 1.2:1 Input VSWR in both On and Off states 1800 to 2000 MHz Operation 16 Pin TSSOP Plastic Package Accommodates Battery Charging Conditions up to 5.5 Volts ® Self-Aligned MSAG -Lite MESFET Process VDD1 N/C GND GND RFIN/VGG1 GND GND VGG2 VDD2 GND GND GND RFOUT/VDD3 GND GND VGG3 54% PAE 100% Duty Cycle.
