MA02104AF - 3.6V 1.2W RF Power Amplifier IC for N-PCS/ISM900

Product Overview

Tyco

📥 Download Datasheet

MA02104AF 3.6V 1.2W RF Power Amplifier IC for N-PCS/ISM900 by Tyco - Datasheet Preview — Datasheet preview – MA02104AF

Datasheet Details

Part number	MA02104AF
Manufacturer	Tyco
File Size	201.28 KB
Description	3.6V 1.2W RF Power Amplifier IC for N-PCS/ISM900
Datasheet	MA02104AF Datasheet
Additional preview pages of the MA02104AF datasheet.

Product details

Features

=.
=.
=.
=.
=.
=.
=.

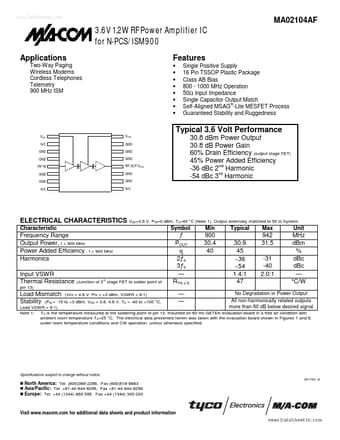

= Single Positive Supply 16 Pin TSSOP Plastic Package Class AB Bias 800 - 1000 MHz Operation 50Ω Input Impedance Single Capacitor Output Match ® Self-Aligned MSAG -Lite MESFET Process Guaranteed Stability and Ruggedness VDD1 N/C GND GND RF IN GND GND N/C VDD2 GND GND GND RF OUT/VDD3 GND GND N/C Typical 3.6 Volt Performance 30.8 dBm Power Output 30.8 dB Power Gain 60% Drain Efficiency (output stage FET) 45% P.
