SW-206 - (SW-205 / SW-206) Matched GaAs SPDT Switch

This page provides the datasheet information for the SW-206, a member of the SW-205 (SW-205 / SW-206) Matched GaAs SPDT Switch family.

Datasheet Summary

Features

  • q q q q q SW-205/206 V2.00 DI-1 0.87 (22.1 Ϯ 0.5) CTL RF 1 High Isolation, 50 dB Typical Fast Switching Speed Low DC Power Consumption Integral TTL (SW-205) or CMOS (SW-206) Driver MIL-STD-883 Screening Available RF 2.
  • + Guaranteed Specifications.
  • 0.200 (5.1) MAX 0.018 ±0.005 (0.46 ±0.13) DIA. 14 PINS 0.100 (2.5) TYP 0.120 (3.0) MIN Operating Characteristics 0.300 (7.6) 0.50 (12.7 Ϯ 0.5) 0.10 (2.5 Ϯ0.5) 0.13 (3.3Ϯ0.5) (Positive Voltage Only) Dimensions in ( ) are in m.

📥 Download Datasheet

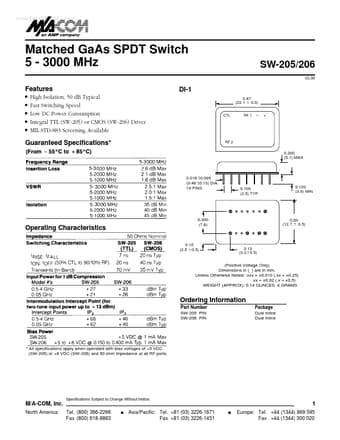

Datasheet preview – SW-206

Datasheet Details

Part number SW-206
Manufacturer Tyco Electronics
File Size 132.17 KB
Description (SW-205 / SW-206) Matched GaAs SPDT Switch
Datasheet download datasheet SW-206 Datasheet
