PA1221 - 1800-2000 MHz. Low Noise High Dynamic Range Linear Amplifier

Tyco Electronics

Datasheet Details

Part number	PA1221
Manufacturer	Tyco Electronics
File Size	48.86 KB
Description	1800-2000 MHz. Low Noise High Dynamic Range Linear Amplifier
Datasheet	PA1221_TycoElectronics.pdf

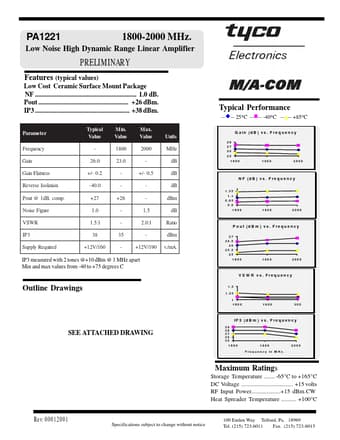

(typical values) Low Cost Ceramic Surface Mount Package NF 1.0 dB. Pout +26 dBm. IP3 +38 dBm. Parame te r Frequency Gain Gain Flatness Reverse Isolation Pout @ 1dB. comp. Noise Figure VSWR IP3 Supply Required Typical Value 26. 0 +/- 0.2 - 40. 0 +27 1. 0 1.5:1 38 +12V/160 M in. Value 18 0 0 23.0 +26 35 M ax. Value 2000 +/- 0.5 1.5 2.0:1 +12V/190 Typical Performance --u-- 25°C --n-- -40°C --∆-- +85°C Units MHz dB dB 28 27 26 25 G a in (d B ) v s . F r e q u e n c y 1800 1900 2000 N F (d.
