PA1220 - 800-1000 MHz. Low Noise High Dynamic Range Linear Amplifier

Tyco Electronics

Datasheet Details

Part number	PA1220
Manufacturer	Tyco Electronics
File Size	49.78 KB
Description	800-1000 MHz. Low Noise High Dynamic Range Linear Amplifier
Datasheet	PA1220_TycoElectronics.pdf

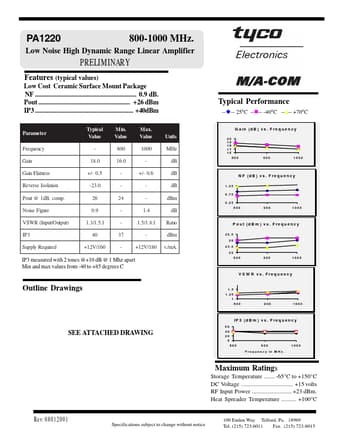

(typical values) Low Cost Ceramic Surface Mount Package NF 0.9 dB. Pout +26 dBm IP3 +40dBm Parame te r Frequency Gain Gain Flatness Reverse Isolation Pout @ 1dB. comp. Noise Figure VSWR (Input/Output) IP3 Supply Required Typical Value 18 . 0 +/- 0.5 - 23. 0 26 0.9 1.3/1.5:1 40 +12V/160 M in. Value 800 16.0 24 37 M ax. Value 1000 +/- 0.6 1.4 1.5/1.8:1 +12V/180 Typical Performance --u-- 25°C --n-- -40°C --∆ -- +70°C G a in (d B ) v s . F r e q u e n c y Units MHz dB dB dB dBm dB Ratio dBm v. /.
