PA1153 - 1800 -2000 MHz. Low Noise Linear Power Amplifier

Tyco Electronics

Datasheet Details

Part number	PA1153
Manufacturer	Tyco Electronics
File Size	34.75 KB
Description	1800 -2000 MHz. Low Noise Linear Power Amplifier
Datasheet	PA1153_TycoElectronics.pdf

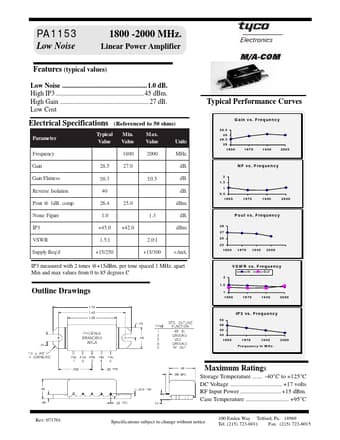

(typical values) Low Noise 1.0 dB. High IP3 45 dBm. High Gain 27 dB. Low Cost Typical Performance Curves G a in v s . F r e q u e n c y 2 9 .5 29 2 8 .5 28 1800 1870 1940 2000 Electrical Specifications Parame te r Frequency Gain Gain Flatness Reverse Isolation Pout @ 1dB. comp. Noise Figure IP3 VSWR Supply Req'd 2 8 .5 ±0.3 40 2 6 .4 1.0 +45.0 1.5:1 +15/250 Typical Value (Referenced to 50 ohms) M in. Value 1800 27.0 ±0.5 M ax. Value 2000 Units MHz. dB. dB. dB. 25.0 1.3 +42.0 2.0:1 +15/300 v.
