PA1131 - 850-900 MHz. Ultra Linear Amplifier

Tyco Electronics

📥 Download Datasheet

PA1131 Datasheet Preview — Preview of PA1131 PDF

Datasheet Details

Part number	PA1131
Manufacturer	Tyco Electronics
File Size	41.55 KB
Description	850-900 MHz. Ultra Linear Amplifier
Datasheet	PA1131_TycoElectronics.pdf

PA1131 Product details

Features

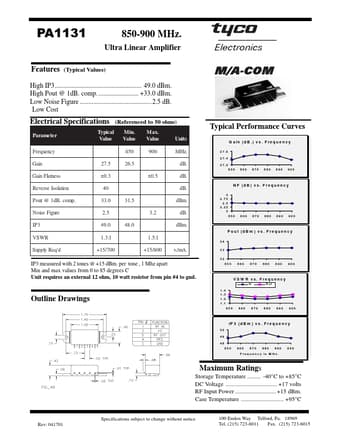

(Typical Values) 850-900 MHz. Ultra Linear Amplifier High IP3 49.0 dBm. High Pout @ 1dB. comp. +33.0 dBm. Low Noise Figure 2.5 dB. Low Cost Electrical Specifications Parame te r Frequency Gain Gain Flatness Reverse Isolation Pout @ 1dB. comp. Noise Figure IP3 VSWR Supply Req'd 2 7 .5 ±0.3 40 3 3 .0 2.5 49.0 1.3:1 +15/700 Typical Value (Referenced to 50 ohms) M in. Value 850 26.5 ±0.5 M ax. Value 9 00 Units MHz. dB. dB. dB. 31.5 3 .2 48.0 1.5:1 +15/800 v. /mA. dBm. dB. dBm. Typical Performa.
