PA1132 - 1800-2000 MHz. Linear Power Amplifier

Tyco Electronics

📥 Download Datasheet

PA1132 Datasheet Preview — Preview of PA1132 PDF

Datasheet Details

Part number	PA1132
Manufacturer	Tyco Electronics
File Size	37.23 KB
Description	1800-2000 MHz. Linear Power Amplifier
Datasheet	PA1132_TycoElectronics.pdf

PA1132 Product details

Features

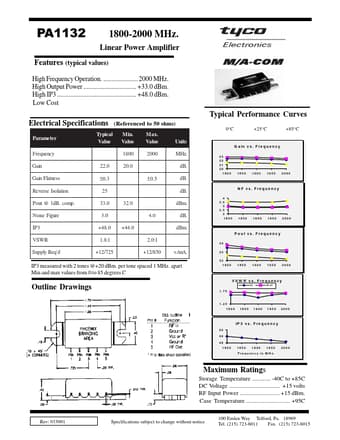

(typical values) 1800-2000 MHz. Linear Power Amplifier High Frequency Operation. 2000 MHz. High Output Power +33.0 dBm. High IP3 +48.0 dBm. Low Cost Typical Performance Curves Electrical Specifications Parame te r Frequency Gain Gain Flatness Reverse Isolation Pout @ 1dB. comp. Noise Figure IP3 VSWR Supply Req'd 2 2 .0 ±0.3 25 3 3 .0 3.0 +48.0 1.8:1 +12/725 +44.0 2.0:1 +12/850 v. /mA. 32.0 4 .0 Typical Value (Referenced to 50 ohms) 0°C +25°C +85°C M in. Value 1800 20.0 M ax. Value 2000.
