MAFL-007898-CD0AC0 - CATV Diplex Filter

Tyco Electronics

MAFL-007898-CD0AC0 Description

RoHS Compliant CATV Diplex Filter 50 - 870 / 975 - 1525 / 2000 - 3000MHz .
M/A-COM’s MAFL-007898-CD0AC0 is a surface mount diplex filter unit designed for MoCA applications.

MAFL-007898-CD0AC0 Features

* 75 Ohm SMT unit RoHS

MAFL-007898-CD0AC0 Applications

* Pin Configuration www. DataSheet4U. com Function Pin Number Common Port Low Pass Port 2 4 10 1, 3, 5 - 9 - Absolute Maximum Ratings Parameter RF Power DC Current Operating Temperature Storage Temperature 1,2 High Pass Port Ground Absolute Maximum 250mW 30mA -40°C to +85°C -40°C to +85°C Not

📥 Download Datasheet

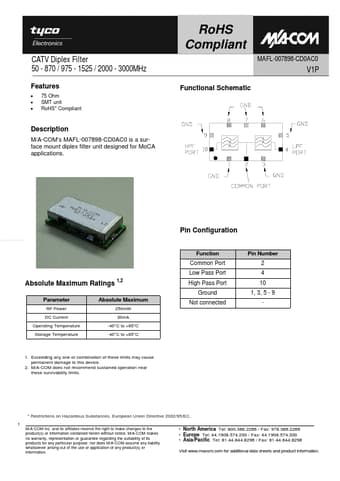

MAFL-007898-CD0AC0 Datasheet Preview — Preview of MAFL-007898-CD0AC0 PDF

Datasheet Details

Part number: MAFL-007898-CD0AC0
Manufacturer: Tyco Electronics
File Size: 116.80 KB
Datasheet: MAFL-007898-CD0AC0_TycoElectronics.pdf
Description: CATV Diplex Filter
