MAFL-009055-CD4254 - Broadband CATV Diplexer

Download the MAFL-009055-CD4254 datasheet PDF (MAFL-009055-CD4254-MA included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for broadband catv diplexer.

Description

M/A-COM’s MAFL-009055-CD4254 is a low cost, SMT diplex filter designed for CATV, DTV, DBS, cable modem and set top box applications.

The technology used in this design is patent pending.

Features

  • 75 Ohm.
  • SMT Unit.
  • RoHS Compliant.
  • Excellent Temperature Stability.
  • Excellent Repeatability.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MAFL-009055-CD4254-MA-COM.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by MA-COM

Full PDF Text Transcription

Click to expand full text

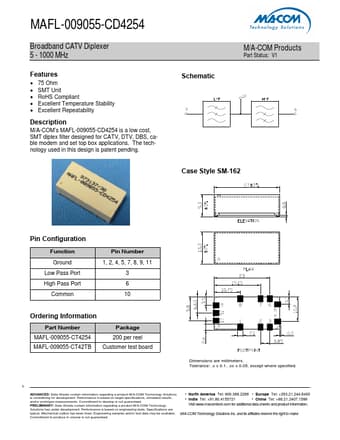

MAFL-009055-CD4254 Broadband CATV Diplexer 5 - 1000 MHz Features • 75 Ohm • SMT Unit • RoHS Compliant • Excellent Temperature Stability • Excellent Repeatability Description M/A-COM’s MAFL-009055-CD4254 is a low cost, SMT diplex filter designed for CATV, DTV, DBS, cable modem and set top box applications. The technology used in this design is patent pending. Schematic M/A-COM Products Part Status: V1 Case Style SM-162 Pin Configuration Function Ground Low Pass Port High Pass Port Common Pin Number 1, 2, 4, 5, 7, 8, 9, 11 3 6 10 Ordering Information Part Number Package MAFL-009055-CT4254 200 per reel MAFL-009055-CT42TB Customer test board Dimensions are millimeters. Tolerance: .x ± 0.1, .xx ± 0.05, except where specified.
