MA4AGSBP907 AlGaAs Solder Bump Flip-Chip PIN Diode

MA4AGSBP907 Description

AlGaAs Solder Bump Flip-Chip PIN Diode .
MA4AGSBP907 Rev 2.

MA4AGSBP907 Features

* Low Series Resistance, 4 Ω
* Ultra Low Capacitance, 25 fF
* High Switching Cutoff Frequency, 40 GHz
* 2 Nanosecond Switching Speed
* Can be Driven by Buffered TTL
* Silicon Nitride Passivation
* Polyimide Scratch Protection
* Solderab

MA4AGSBP907 Applications

* This diode is designed for use in pulsed or CW applications, where single digit nS switching speed is required. For surface mount assembly, the low capacitance of the MA4AGSBP907 makes it ideal for use in microwave multithrow switch assemblies, where the series capacitance of each “off” port advers

📥 Download Datasheet

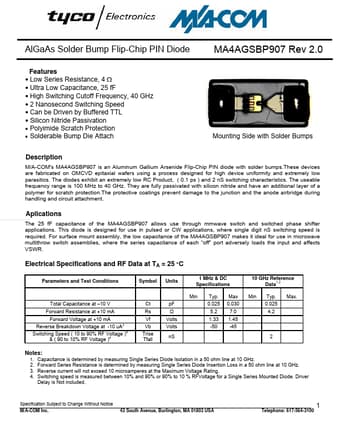

Preview of MA4AGSBP907 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MA4AGSBP907
Manufacturer
Tyco Electronics
File Size
162.85 KB
Datasheet
MA4AGSBP907_TycoElectronics.pdf
Description
AlGaAs Solder Bump Flip-Chip PIN Diode
