MA4AGSW5, MA4AGSW5-MA SP5T AlGaAs PIN Diode Switch

MA4AGSW5 Description

MA4AGSW5 SP5T AlGaAs PIN Diode Switch V5 .
MACOM’s MA4AGSW5 is an Aluminum-GalliumArsenide, single pole, five throw (SP5T), PIN diode switch.

MA4AGSW5 Features

*  Ultra Broad Bandwidth: 50 MHz to 50 GHz  Functional Bandwidth : 50 MHz to 70 GHz  1.7dB Insertion Loss at 50 GHZ  35 dB Isolation at 50 GHz  Low Current consumption.
* -10mA for low loss state
* +10mA for Isolation state  MACOM’s unique AlGaAs hetero-junction anode technology.  Silico

MA4AGSW5 Applications

* The high electron mobility of AlGaAs and the low capacitance of the PIN diodes used makes this switch ideal for fast response, high frequency, multi-throw switch designs where the series capacitance in each off-arm will load the input. AlGaAs PIN diode switches are an ideal choice for switching arra

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MA4AGSW5, MA4AGSW5-MA. Please refer to the document for exact specifications by model.

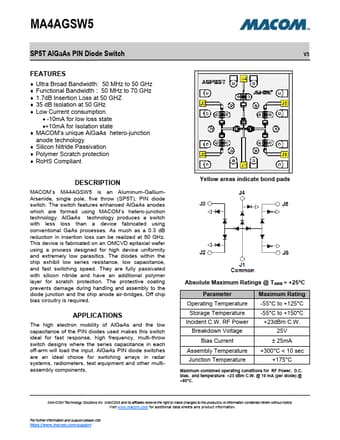

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MA4AGSW5, MA4AGSW5-MA
Manufacturer
MA-COM
File Size
530.14 KB
Datasheet
MA4AGSW5-MA-COM.pdf
Description
SP5T AlGaAs PIN Diode Switch
Note
This datasheet PDF includes multiple part numbers: MA4AGSW5, MA4AGSW5-MA.
Please refer to the document for exact specifications by model.
