FR11-0001 - 3- Port DROP-IN CIRCULATOR

Name: FR11-0001
SKU: FR11-0001-380076

Tyco Electronics

The FR11-0001 by Tyco Electronics is a 3- Port DROP-IN CIRCULATOR. Below is the official datasheet preview.

Datasheet Details

Part number	FR11-0001
Manufacturer	Tyco Electronics
File Size	45.24 KB
Description	3- Port DROP-IN CIRCULATOR
Datasheet	FR11-0001_TycoElectronics.pdf

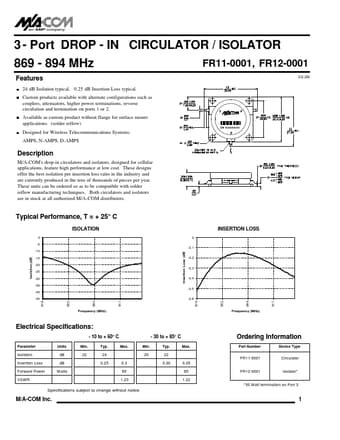

Additional preview pages of the FR11-0001 datasheet.

M/A-COM's drop-in circulators and isolators, designed for cellular applications, feature high performance at low cost.

24 dB Isolation typical, 0.25 dB Insertion Loss typical. Custom products available with alternate configurations such as couplers, attenuators, higher power terminations, reverse circulation and termination on ports 1 or 2. Available as custom product without flange for surface mount.
