FR1101F - Series Right Angle AlInGaP SMT LED

Features

  • Compact, super bright AlInGaP die.
  • Excellent for indicators and backlighting LCDs s.

📥 Download Datasheet

Datasheet Details

Part number FR1101F
Manufacturer Stanley
File Size 183.30 KB
Description Series Right Angle AlInGaP SMT LED
Datasheet download datasheet FR1101F Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FR110 1A Leaded Type Fast Rectifiers CITC
FR11 Single Junction Drop-In Circulator Tyco Electronics
FR11-0001 3- Port DROP-IN CIRCULATOR Tyco Electronics
FR11-0001 Single Junction Drop-In Circulator Tyco Electronics
FR11-0002 3-Port DROP-IN CIRCULATOR Tyco Electronics

Other Datasheets by Stanley

Part Number Description
FR1105W Dome Lens Type AllnGaP SMT LED
FR1111C Ultra Compact AllnGaP SMT LED
FR1112H Thin Type AllnGaP SMT LED

Full PDF Text Transcription

Click to expand full text

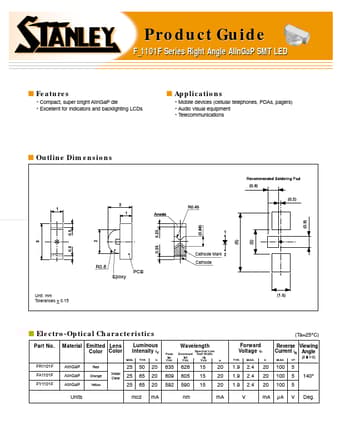

Product Guide F_1101F Series Right Angle AlInGaP SMT LED s Features • Compact, super bright AlInGaP die • Excellent for indicators and backlighting LCDs s Applications • Mobile devices (cellular telephones, PDAs, pagers) • Audio visual equipment • Telecommunications s Outline Dimensions www.DataSheet4U.com Cathode Mark R0.8 Epoxy PCB Cathode Unit: mm Tolerances + 0.15 s Electro-Optical Characteristics Part No. Material Emitted Lens Color Color AlInGaP AlInGaP AlInGaP Red Orange Yellow Water Clear (Ta=25°C) Wavelength Peak λp TYP. Dominant λd TYP. Spectral Line Half Width λ ∆λ TYP. IF Luminous Intensity IV MIN. TYP. IF Forward Voltage V TYP. MAX. F Reverse Viewing Current IR Angle IF MAX.
