TSA60R070S1 N-Channel MOSFET

TSA60R070S1 Description

TSA60R070S1 600V 47A N-Channel SJ-MOSFET TSA60R070S1 600V 47A N-Channel SJ-MOSFET General .
Truesemi SJ-FET is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistan.

TSA60R070S1 Features

* 650V @TJ = 150 ā„ƒ
* Typ. RDS(on) = 60mĪ©
* Ultra Low gate charge (typ. Qg = 170nC)
* 100% avalanche tested Absolute Maximum Ratings Symbol VDSS ID IDM VGSS EAS IAR EAR Parameter Drain-Source Voltage Drain Current -Continuous (TC = 25ā„ƒ) -Continuous (TC = 100ā„ƒ) Dr

📥 Download Datasheet

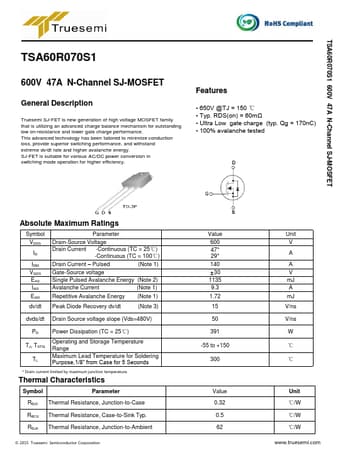

Preview of TSA60R070S1 PDF
