TSA10N80M - N-Channel MOSFET

Name: TSA10N80M
SKU: TSA10N80M-1108477

Truesemi

The TSA10N80M by Truesemi is a N-Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	TSA10N80M
Manufacturer	Truesemi
File Size	224.53 KB
Description	N-Channel MOSFET
Datasheet	TSA10N80M-Truesemi.pdf

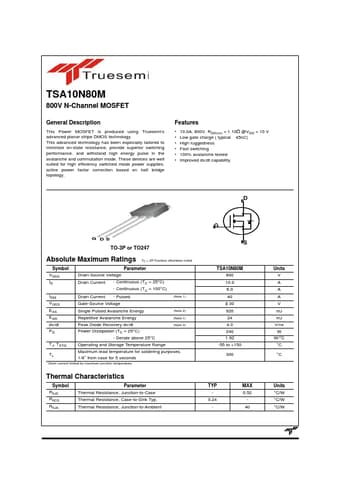

Additional preview pages of the TSA10N80M datasheet.

This Power MOSFET is produced using Truesemi‘s advanced planar stripe DMOS technology.

10.0A, 800V, RDS(on) = 1.10Ω @VGS = 10 V.
Low gate charge ( typical 45nC).
High ruggedness.
Fast switching.
100% avalanche tested.
Improved dv/dt capability G DS TO-3P or TO247 Absolute Maximum Ratings TC = 25°Cunless otherwise noted Symbol Parameter VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C) - Continuous (TC = 100°C) IDM Drain Current - Pulsed (Note 1) VGSS Gate-Source Voltage EAS Single Pulsed Avalanch.
