TGL2217 100 Watt VPIN Limiter

TGL2217 Description

Applications * Receive Chain Protection * Commercial and Military Radar * Electronic Warfare * Communications TGL2217.
The Qorvo TGL2217 is a high power, wideband GaAs VPIN limiter capable of protecting sensitive receive channel components against high power incident s.

TGL2217 Features

* Frequency Range: 0.1 to 20.0 GHz
* Insertion Loss: < 0.7 dB
* Peak Power Handling: 10 W (pulsed)
* Flat Leakage: < 18.5 dBm (pulsed)
* Spike Leakage < 20.5 dBm
* Passive (no DC bias required)
* Recovery time < 115 ns
* Die Dimensions:

TGL2217 Applications

* Receive Chain Protection
* Commercial and Military Radar
* Electronic Warfare
* Communications TGL2217 0.1

📥 Download Datasheet

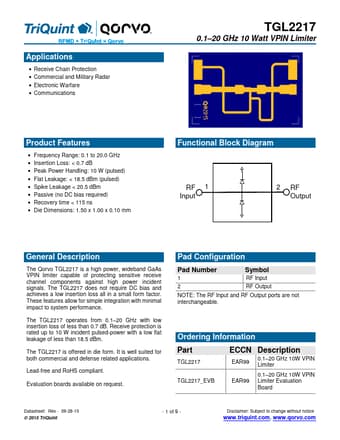

Preview of TGL2217 PDF
